| Brand Name : | CHAMPION |
| Model Number : | New energy MINI-BUS Platform |

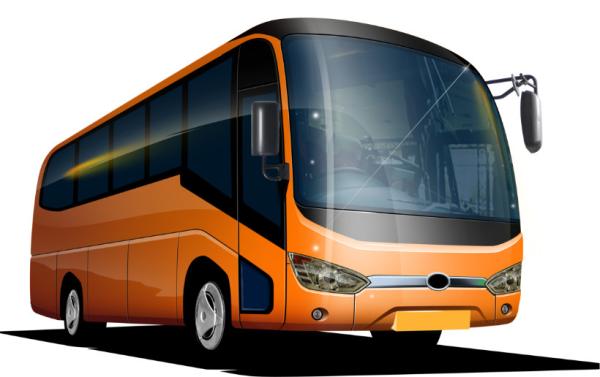

New energy MINI-BUS Platform-design patent-new energy/coach bus
The new energy mini bus platform is build for city microcirculation, it is a pure electric bus with novel style, flexible and convenient, efficient and energy saving, mainly used in specific areas (such as colleges and universities, business centers and tourist attractions, large living community), for public transportation and corporate commuting etc.
Based on this platform we have developed four models: 6m bus, 6m shuttle bus,7m bus,8m shuttle bus.
Highlights
1.New style design, by adopting truss structure and air suspension,
achieved good ride comfort.
Equipped with body lifting system and set double access passage,
convenient for get on and off of passengers.
2.The 7m bus have realized double door of front and rear, the efficiency of up and down passengers increased 4 times than the single door.
3.Through the unique design patent and lean design concept, the cost will be reduced to 2/3 of the similar models.
4.Car networking system, real-time monitoring of the vehicle state, facilitate the scheduling control, on-board networking will bring you a colorful journey.
| parameter configuration | ||||
| contents/vehicle type | 6m bus | 6m shuttle bus | 7m bus | 8m shuttle bus |
| vehicle overall lenghth (mm) | 6050 | 6050 | 6990 | 8040 |
| vehicle overall width (mm) | 2200 | 2200 | 2200 | 2200 |
| vehicle overall height (mm) | 2650 | 2650 | 2650 | 2650 |
| wheel base (mm) | 3810 | 3810 | 4750 | 5300 |
| front/rear tread (mm) | 1840/1610 | 1840/1610 | 1840/1610 | 1840/1610 |
| front overhang (mm) | 870 | 870 | 870 | 870 |
| rear overhang (mm) | 1370 | 1370 | 1370 | 1870 |
| curb weight (kg) | 4350 | 4450 | 4860 | 5150 |
| gross weight (kg) | 6960 | 6000 | 7860 | 7550 |
| maximum speed (km/h) | ≤69 | ≤100 | ≤69 | ≤95 |
| gradeability | ＞15% | ＞15% | ＞15% | ＞15% |
| 0-50km/h acceleration | ≤20 | ≤20 | ≤20 | ≤20 |
| angle of incidence/descent | 16/10 | 16/10 | 16/10 | 16/7.4 |
| power type | permanent magnet synchronous motor | permanent magnet synchronous motor | permanent magnet synchronous motor | permanent magnet synchronous motor |
| seating capacity | 40/10-13 | 10-20 | 40/10-13 | 10-32 |
| rated/maximum power (kw) | 75/130 | 75/130 | 60/110 | 80/140 |
| maximum torque (N.m) | 750 | 750 | 1000 | 1000 |
| electric quantity (kWh) | 74 | 74 | 74 | 74 |
| driving range (km) | ＞220 | ＞220 | ＞210 | ＞220 |
| power consumption per kilometer | 0.31 | 0.31 | 0.34 | 0.35 |
| Ekg (Wh/km.kg) | ＜0.24 | ＜0.24 | ＜0.24 | ＜0.24 |
|
|
